For manufacturers and engineers in Kinshasa seeking a reliable supply of durable tubing, Wissa Pipes stands as your trusted local partner. We understand the demanding conditions faced by local industry, which is why we specialize in providing high-quality Stainless Steel 420 tubing. Our commitment is to deliver materials that combine exceptional strength with excellent corrosion resistance, ensuring your projects are built to last. We pride ourselves on being more than just a supplier; we are a dedicated resource for the industrial growth of the Congo, offering consistent quality and expert support right here in Kinshasa.
This particular grade of stainless steel is defined by its martensitic structure and a key composition that includes a minimum of 12% chromium. This composition is carefully balanced to achieve its notable hardness and strength after a specific heat treatment process. While it offers good resistance to corrosion in mild environments, its true strength lies in its impressive mechanical properties. It can be hardened significantly, making it exceptionally strong and wear-resistant, which is why it’s often selected for applications where durability under stress is a primary concern.
Item | Stainless Steel 420 Tube |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |

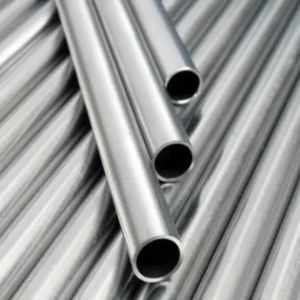

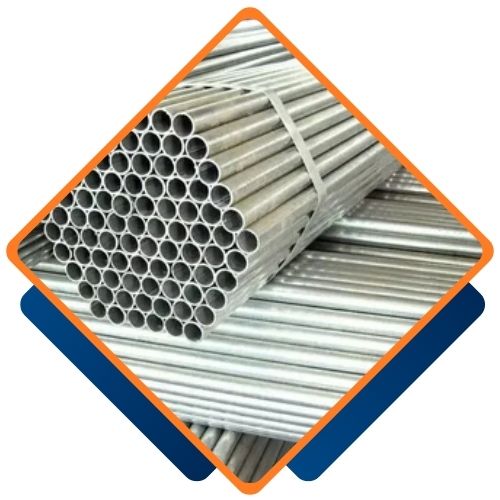

Type | Seamless / ERW / Welded / Fabricated / CDW |
Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

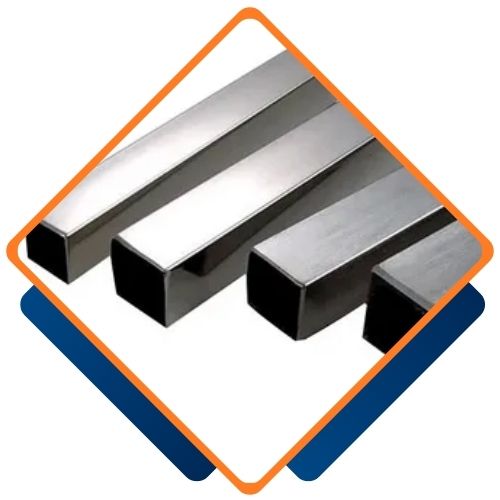

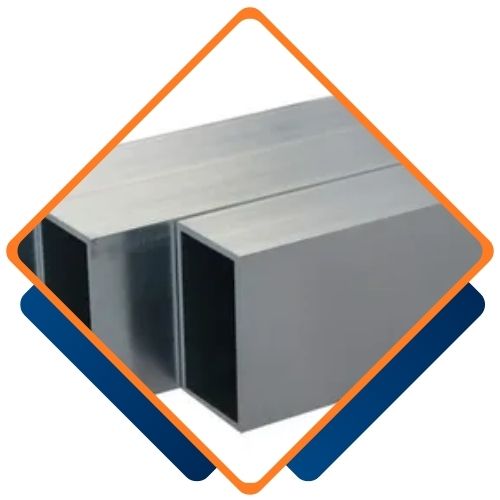

Form | 420 Round Tubing, 420 Square Tubes, 420 Rectangular Tube, “U” Shape 420 Tubing, 420 Hydraulic Tubes |
Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
Dimension | All Tubes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | |
|---|---|---|---|---|---|---|---|
| 420 | Min. max. | 0.15 – | – 1 | – 1 | – 0.040 | – 0.03 | 12.0 14.0 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max | – |
| 204 | 1600 | 1360 | 12 | 444 | 20 |
| 316 | 1580 | 1365 | 14 | 444 | 19 |
| 427 | 1620 | 1420 | 10 | 461 | # |
| 538 | 1305 | 1095 | 15 | 375 | # |
| 593 | 1035 | 810 | 18 | 302 | 22 |
| 650 | 895 | 680 | 20 | 262 | 42 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 420 Tubing from Wissa Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Wissa Pipes and Tubes, one of the largest suppliers of Stainless Steel 420 Tubing in Kinshasa, Thailand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 420 Tubing to meet your specific requirements. Our team at Wissa Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@wissapipes.com.
You’ll often find Stainless Steel 420 Tubing in surgical instruments, dental tools, and medical devices, thanks to its excellent hardness and moderate corrosion resistance. It’s also used in automotive parts, pump shafts, valves, and fasteners where high wear resistance is essential. This tubing is versatile enough for the food processing industry, cutlery, and decorative fittings. Plus, it’s ideal for petrochemical equipment and mechanical components that require both strength and longevity, ensuring reliable performance across a variety of industrial and commercial sectors.
