Home > Super Duplex Steel > Super Duplex Steel Pipes S32750

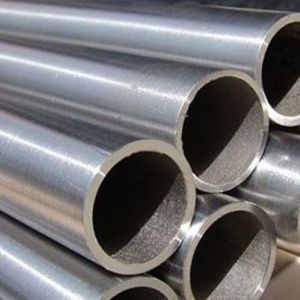

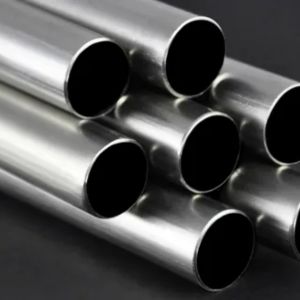

Wissa Pipes, located in Kinshasa, Congo, has built a solid reputation as a reliable manufacturer and supplier of top-notch Super Duplex Steel Pipes S32750. These pipes are celebrated for their remarkable strength, resistance to corrosion, and impressive durability. Crafted with cutting-edge technology, our Super Duplex Steel S32750 Pipes meet international quality standards, ensuring they perform exceptionally well even in the toughest conditions. With their ability to resist pitting, crevice corrosion, and stress cracking, these pipes are perfect for demanding industrial settings. Wissa Pipes caters to a variety of sectors, including oil and gas, marine, petrochemical, and power generation industries, both in Congo and around the world.
The Super Duplex Steel Pipes S32750 are made up of chromium (24–26%), nickel (6–8%), molybdenum (3–5%), nitrogen, and a low carbon content, which together create a balanced ferritic-austenitic microstructure. This unique composition provides outstanding resistance to chloride-induced corrosion, with high tensile strength ranging from 750 to 900 MPa and yield strength around 550 MPa. The alloy is known for its excellent toughness, weldability, and fatigue resistance, making it a reliable choice for high-pressure, high-temperature, and corrosive environments.
| Specification | ASTM A 789 ASME SA 789 |
| Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Size |
|
| Welded Pipes Size |
|
| EFW Pipes Size |
|
| Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |

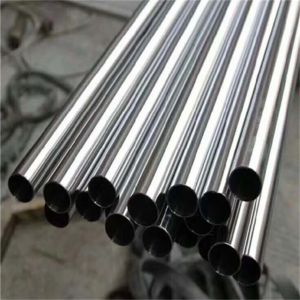

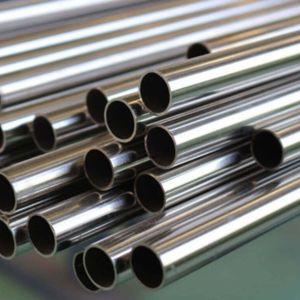

| manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
| Origin | Indian, European, Korean, Japanese |

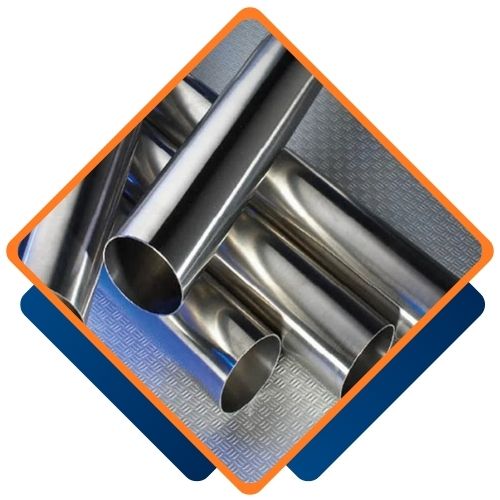

| Form | Round, Square, Rectangular |
| Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
| Grade | Super Duplex 2507 |
|---|---|
| Carbon | 0.030 |
| Manganese | 1.20 |
| Phosphorous | 0.035 |
| Sulphur | 0.020 |
| Silicon | 0.80 |
| Chromium | 24.0–26.0 |
| Nickel | 6.0–8.0 |
| Molybdenum | 3.0–5.0 |
| Nitrogen | 0.24–0.32 |
| Iron | Bal. |
| Copper | 0.50 |
| Alloy | UNS Designation | Spec. | psi | MPa | ksi | psi | MPa | ksi | Elongation in 2 in. (min.) % | Grain Size Req. | Max. Hardness | Modulus of Elasticity (x106psi) | Mean Coefficient of Thermal Expansion (IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ ft2-h-°F) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2507 | S32750 | A789, A790 | 116,000 | 800 | 116 | 80,000 | 550 | 80 | 15 | – | 32 Rc | 27.5 | 7.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Pipes S32750 from Wissa Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Wissa Pipes and Tubes, one of the largest suppliers of Duplex Steel Pipes S32750 in Kinshasa, Thailand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel Pipes S32750 to meet your specific requirements. Our team at Wissa Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@wissapipes.com.
| Alloy | UNS Designation | Werkstoff NR. | Specifications | AFNOR | Grade | DIN | EN | SS |
|---|---|---|---|---|---|---|---|---|
| 2507 | S32750 | 1.4410 | A/SA789, A/SA790 | Z3 CN 25.06 Az | F53 | X 2 Cr Ni MoN 25.7.4 | 1.4410 | 2328 |
These Super Duplex Steel Pipes S32750 are widely utilized in industries that face harsh and corrosive conditions. In the oil and gas sector, they are commonly used for subsea pipelines, heat exchangers, and process systems. The chemical and petrochemical industries rely on them for transporting corrosive fluids and acids. The marine and desalination sectors depend on these pipes for structural and fluid-handling systems that are exposed to seawater. Additionally, they find applications in power plants, the paper and pulp industry, and pressure vessel manufacturing, thanks to their superior mechanical strength, corrosion resistance, and long service life.
| Pipe OD mm | Pipe WT mm | Nominal size | Weight, kg/m |
|---|---|---|---|
| 21.34 | 2.11 | 1/2″ 10S | 1.02 |
| 21.34 | 2.77 | 1/2″ 40S | 1.29 |
| 26.67 | 2.11 | 3/4″ 10S | 1.30 |
| 26.67 | 2.87 | 3/4″ 40S | 1.71 |
| 33.40 | 1.65 | 1″ 5S | 1.31 |
| 33.40 | 2.77 | 1″ 10S | 2.13 |
| 33.40 | 3.38 | 1″ 40S | 2.54 |
| 42.16 | 1.65 | 1 1/4″ 5S | 1.67 |
| 42.16 | 2.77 | 1 1/4″ 10S | 2.73 |
| 42.16 | 3.56 | 1 1/4″ 40s | 3.44 |
| 48.26 | 1.65 | 1 1/2″ 5S | 1.92 |
| 48.26 | 2.77 | 1 1/2″ 10S | 3.16 |
| 48.26 | 3.68 | 1 1/2″ 40S | 5.49 |
| 60.33 | 1.65 | 2″ 5S | 2.42 |
| 60.33 | 2.77 | 2″ 10S | 3.99 |
| 60.33 | 3.91 | 2″ 40S | 5.52 |
| 73 | 3.05 | 2 1/2″ 10s | 5.35 |
| 73 | 5.16 | 2 1/2″ 40S | 8.77 |
| 88.90 | 2.11 | 3″ 5S | 4.58 |
| 88.90 | 3.05 | 3″ 10S | 6.56 |
| 88.90 | 5.49 | 3″ 40S | 11.47 |
| 101.60 | 3.05 | 3 1/2″ 10s | 7.53 |
| 114.30 | 2.11 | 4″ 5S | 5.93 |
| 114.30 | 3.05 | 4″ 10S | 8.50 |
| 114.30 | 6.02 | 4″ 40S | 16.32 |
| 141.3 | 3.4 | 5″ 10S | 11.74 |
| 141.3 | 6.55 | 5″ 40S | 22.1 |
| 168.3 | 2.77 | 6″ 5S | 11.48 |
| 168.3 | 3.4 | 6″ 10S | 14.04 |
| 168.3 | 7.11 | 6″ 40S | 28.69 |
| 219.1 | 2.77 | 8″ 5S | 15.0 |
| 219.1 | 3.76 | 8″ 10S | 20.27 |
| 219.1 | 8.18 | 8″ 40S | 43.2 |
| 273 | 3.40 | 10″ 5S | 22.95 |
| 273 | 4.19 | 10″ 10S | 28.2 |
| 273 | 9.27 | 10″ 40S | 61.22 |
| 323.9 | 3.96 | 12″ 5S | 31.72 |
| 323.9 | 4.57 | 12″ 10S | 36.54 |
| 323.9 | 9.53 | 12″ 40S | 75.02 |
| 355.6 | 4.78 | 14″ 10S | 41.99 |
| 355.6 | 9.53 | 14″ STD | 82.583 |
| 406.4 | 9.53 | 16″ STD | 94.706 |
| 406.4 | 4.78 | 16″ 10S | 48.07 |
| 457.2 | 4.78 | 18″ 10S | 54.151 |
| 508.0 | 5.54 | 20″ 10S | 69.702 |
| 610.0 | 6.35 | *24″ 10S | 95.919 |
